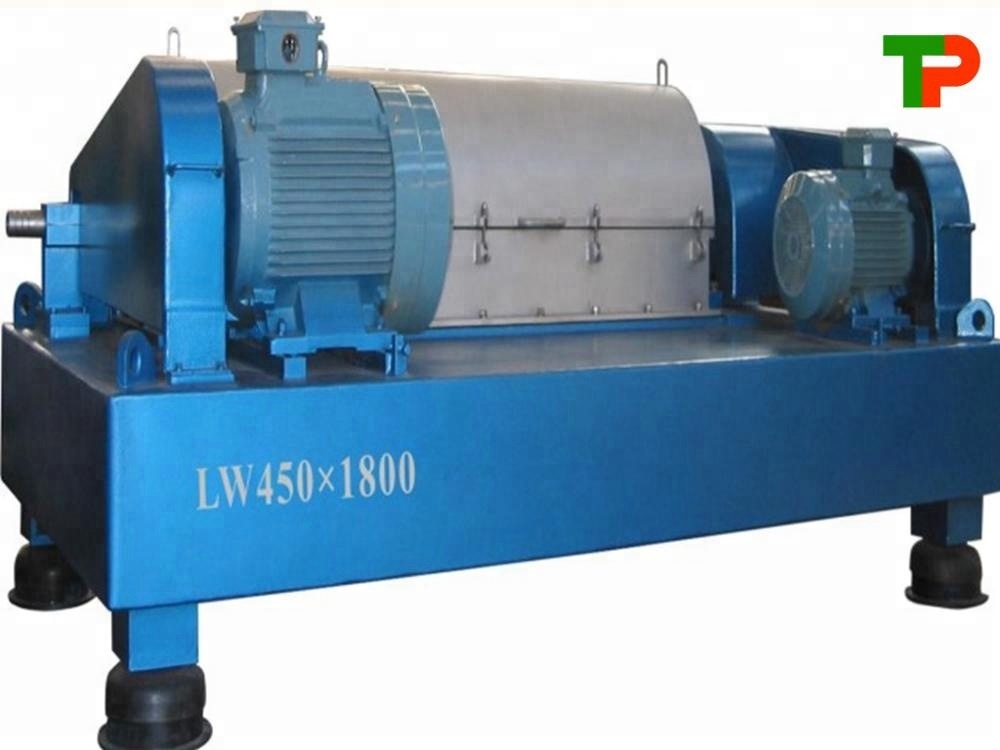

    4-90KW TPLW 3 Phase Sludge Dewatering Decanter Centrifuge for Oil Waste Water on Farms

    Ask Lasest Price
    Brand Name : TOP
    Model Number : TPLW
    Supply Ability : 50 Set/Sets per Month
    Price : $50,000.00/sets
    • Product Details
    • Company Profile

    4-90KW TPLW 3 Phase Sludge Dewatering Decanter Centrifuge for Oil Waste Water on Farms

    TPLW 3 Phase Sludge Dewatering Decanter Centrifuge for oil


    4-90KW TPLW 3 Phase Sludge Dewatering Decanter Centrifuge for Oil Waste Water on Farms

    Working Principle and Selection of Centrifuge

    The horizontal decanter centrifuge is developed and improved by our factory based on introducing foreign advanced technology.It is mainly used in solid and liquid separation of city wastewater, industrial wastewater, chemical, food, pharmaceutical, non metallic minerals and other similar production processes of different fields.

    Structure:

    4-90KW TPLW 3 Phase Sludge Dewatering Decanter Centrifuge for Oil Waste Water on Farms

    1-Feeding pipe;2-Main motor belt pulley;3-Main bearing oil injecting nozzle;4-Bearing of screw;5-Spiral vane;6-Rotary drum;7-Bearing of screw;8-Main bearing;9-Main bearing oil injecting nozzle;10-Secondary motor belt pulley;11- Main bearing;12-Solid discharge;13-Outlet;14-Liquid discharge;15-Liquid baffle;16-Differential;

    4-90KW TPLW 3 Phase Sludge Dewatering Decanter Centrifuge for Oil Waste Water on Farms

    4-90KW TPLW 3 Phase Sludge Dewatering Decanter Centrifuge for Oil Waste Water on Farms


    Selection table for specifications and technical parameters of decanter centrifuge

    Remark:In order to accelerate the progress of science and technology, the company reserves the right to change the size, and its subject to the goods supplied.

    4-90KW TPLW 3 Phase Sludge Dewatering Decanter Centrifuge for Oil Waste Water on Farms


    Working principle:

    The suspension, through the feeding pipe 1, goes from the outlet 13 into the drum 6.Under the centrifugal force generated by high-speed rotation, the solid particles of large proportion deposited on the inner wall of the drum, the spiral vanes 5, performing relative movements with respect to the drum, continuously scrap the solid particles deposited on the drum wall and rolled to solid discharge 12. After-separation clear flow out through opening 14 on liquid layer adjusting plate. The relative movement between the spiral vanes and the drum is called differential rotation, which is realized by the differential 16. Its scope is controlled by secondary motor, thus realizing the continuous separation process of centrifuge.

    Product advantages(Product performances):

    Good adaptability: All kinds of special requirements of raw material and technique on centrifuge are fully considered in the design. the main function parts are improved in speciality and adjustability. As long as users explain the location of their installation, physical and chemical characteristics and process requirements, we will provide users the most suitable models.

    High degree of automation

    Good running stability: The differential used by centrifuge is second-stage involute planetary gear differential, which adopts the unique low oil level operation technology of our factory, with low working temperature, large transmission torque and reliable performance.

    Strong technique:The centrifuge adopts dual motors, double frequency conversion energy feedback differential speed system, which can realize flexible speed regulation and online intelligent control for differential speed, and adjust differential speed at any time according to the change of material.

    Corrosion resistance:drum , screw body, hood and other parts contacting with material are made of high quality stainless steel

    Good operating environment

    Complete safety protection device: Torque protection, power control, vibration and temperature measurement and other multiple protection.

    Good appearance

    Package


    4-90KW TPLW 3 Phase Sludge Dewatering Decanter Centrifuge for Oil Waste Water on Farms


    Factory


    4-90KW TPLW 3 Phase Sludge Dewatering Decanter Centrifuge for Oil Waste Water on Farms
