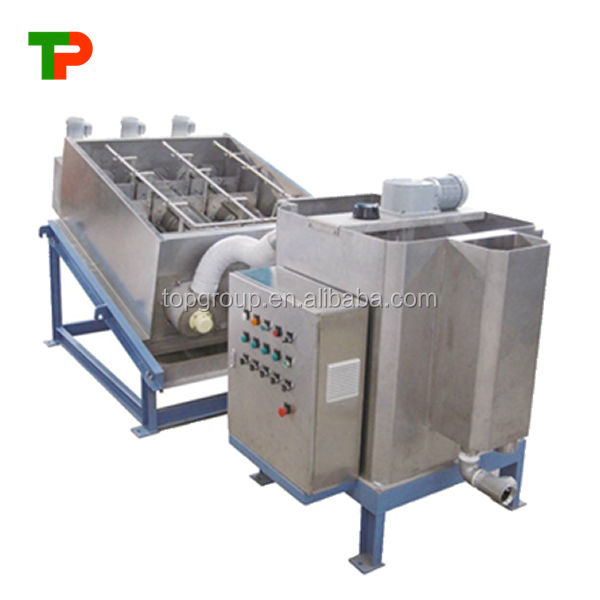

Stainless steel sludge screw press dewatering for textile water filter wastewater treatment

1.Suitable for sludge dewatering of high/low consistency. When deal with low consistency sludge (2000mg/L), there is no need to build a thickening tank, storage pool. Reduce the cost and the release of phosphorus and Anaerobic stink.

2.There is no need to worry about jam up. Reduce the cleaning water consumption.

3.The dewatering screw press electrical cabinet, disposal tank and dehydrator are integrated, which reduces the covering area and brings convenience to installment.

Application of volute screw press sludge dewatering machine:

n Municipal water and wastewater treatment plants

n Agricultural/fishery community wastewater treatment plants

n Industrial waste treatment plants

n Food/beverage production plants

n Dairy farming/Meat processing plants

n Chemicals manufacturing plants

n Machinery manufacturing/Metal processing plants

n Laundry wastewater

n Other plants requiring dewatering machine (paper manufacturing, building material manufacturing, oilfield associated water accompanied with crude oil mining, etc.)

Working principle of volute screw press sludge dewatering machine:

The wastewater is pushed into the dewatering machine.The sludge will move to the sludge cake outlet under the pressure of the helical aixs blades. Becuse the gap among the helical blades become narrower,so the sludge bear heavier pressure and began to dewatering under the pressure. The water comes out from the space between fixed and moving plates.

Technical parameters of volute screw press sludge dewatering machine:

1) Not clog: Processing the fats & oil and fiber sludge perfectly.

2) Full automatic: Combining with the auto control system, the machine can operate 24 hours unmanned.

3) Saving Running cost: Water-saving, Power-saving, Drugs-saving etc..

4) No secondary pollution: The screw shaft rotational speed is 2-4 r/min, so there is no noise, vibration and smell.

5) Lightweight and durable: Mechanical dewatering extrusion without rollers and other large body. Stainless steel ensure long service time.

6) Decrease project investment: Integrating with auto-control cabinet, sludge thickening & dewatering body liquid collection tank,
