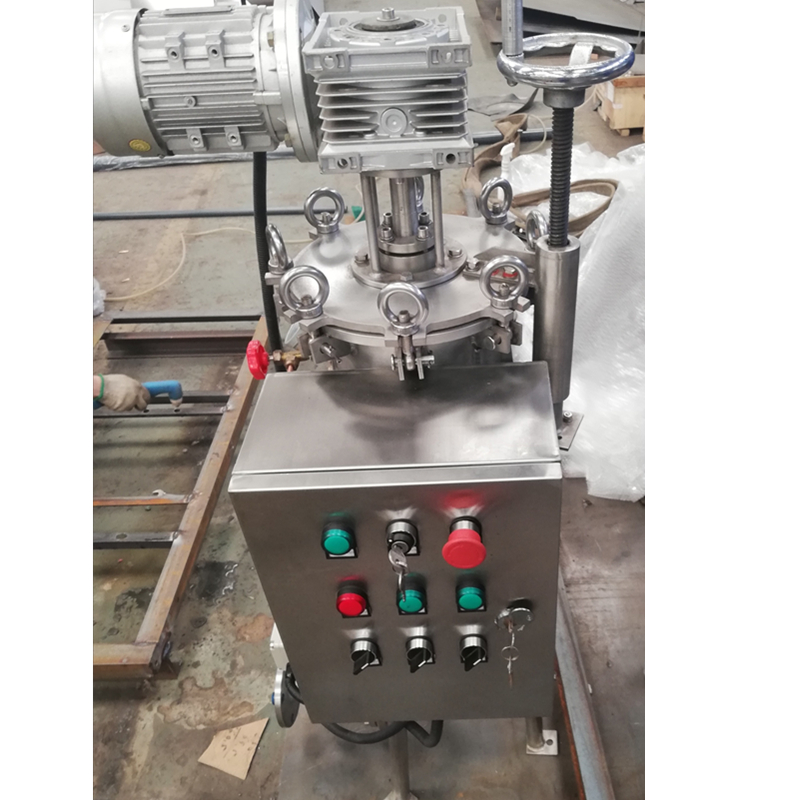

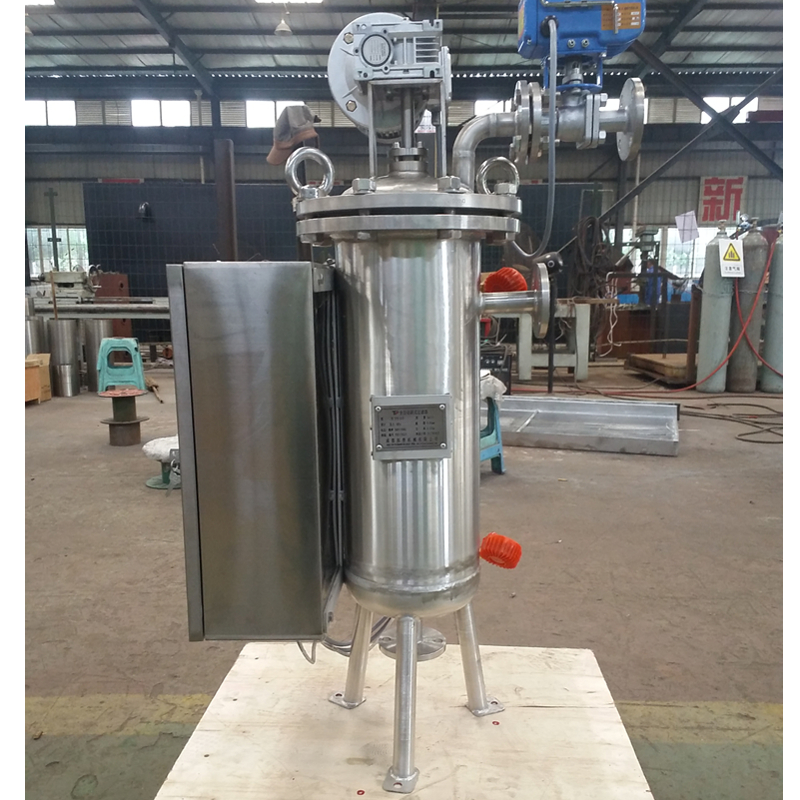

High precision mechanical internal scraping automatic self cleaning filter
Product Introduction:
TPSC is the high efficiency scraping self-cleaning filter removing the impurities particles on the filter element outside by mechanical scraping, it continuously filters on-line. TPSC filter is designed for fine and accurate filtration ranging from20-500 micron. It can avoids extruding and breaking the impurities and is capable of the filtration for water and liquids viscosity up to 800000cps.
Features:
l Automatic 24-hour on-line filtration, no frequent changing out and cleaning
l No disposable filter media consumption, save filter media cost and environment cost
l Adopt outside scraping, Stainless steel scraping blade, good impurity removing performance
l Top quality V-SLOT filter element, accurate slots, extremely smooth, easy to scrap
l Very low pressure drop, stable flowrate, save energy consumption
l Close filtration, no dangerout liquid leakage, good for safe production
l Discharge waste liquid with high impurity concentration, avoid valuable liquid loss
Application:
Products are widely used in water treatment, papermaking ,petroleum ,bio-pharmaceuticals, printing ink, grease, food and beverage, etc.
Technical parameter:
Model | TPW11 | TPW22 | TPW34 | TPW75 | TPW100 | TPW136 |
Filter area(cm2) | 0.11 | 0.22 | 0.34 | 0.75 | 1.00 | 1.36 |
Volume (L) | 16 | 30 | 50 | 145 | 195 | 320 |
Inlet/Outlet (mm) | DN40-DN50 | DN50-DN80 | DN50-DN100 | DN65-DN100 | DN80-DN125 | DN100-DN150 |
Drain outlet (mm) | DN40 | DN50 | ||||
Applicable liquid | Viscidity (<800000cps),Impurity<1000ppm | |||||
Filtration Precision | 20-500μm | |||||
Cleaning pressure diff. | 0.05MPa | |||||
Diff pressure switch | Differential pressure transmitter(DPT) or Differential pressure switch(DPS) | |||||
Gear motor | 180W,380V, IP55 | |||||
Filter element type | V-SLOT, 316L/304 | |||||
Housing material | 316L/304/CS | |||||
Scraping blade material | 304/316L | |||||
Seal material | NBR/VITON(FKM) | |||||
Discharging valve | Pneumatic ballvalve/ Electric ball valve | |||||
*Above parameters only for reference, customized available for detailed requirements
