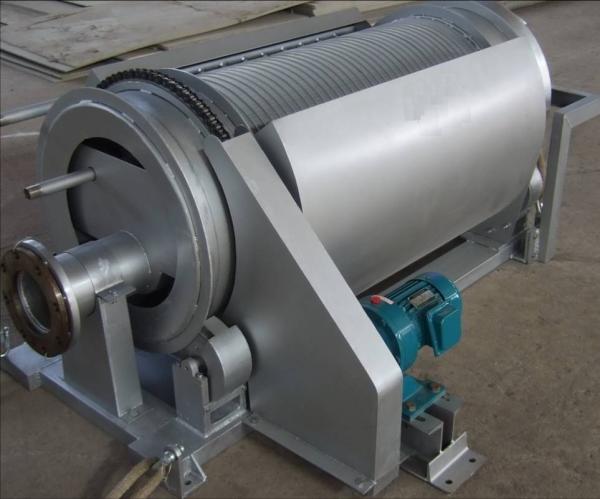

TPO Outward Water Drum Filter for Papermaking/Printing/Textile/Fish Farming
Product Introduction
The machines adopt 15-20 micron slot to achieve mechanical filtration. They can separate the tiny suspended particles from the liquid as far as possible and maximize the effect of solid-liquid separation. They are widely used in paper making, textile, printing, chemical and food industry.
Working Principle
Wastewater flows evenly into the rotating drum, sewage discharges from the other side conducted by rotating spiral, then the filtered water discharges from the slot of screen drum.
Features
Well-distributed water increase capacity |
Simple structure, stable running, easy maintenance |
Chain transmission ensures efficiency |
Back-flushing prevents filter clogging |
Spill-proof plates on sides prevent water splashing |
Specifications
Model | Drum diameter(mm) | Slot Size(mm) | Removal rate | Size(mm) | |
Particle >0.75mm | Particle >0.37mm | ||||
TPO-600 | 600 | 0.02-2 | 95% | 55% | 2450x1000x960 |
TPO-800 | 800 | 3000x1200x1200 | |||
TPO-1000 | 1000 | 3400x1350x1250 | |||
TPO-1200 | 1200 | 3500x1850x1450 | |||
TPO-1500 | 1500 | 3650x1800x1880 | |||
Above parameters only for reference, customized available for detailed requirements
Packing and Delivery
About Us
Founded in 2002, Top Machinery is specialized in the manufacture of wastewater treatment equipment and sludge dewatering machine, such as screw type sludge dewatering machine, decanter centrifuge, brushing/scraping self-cleaning filter, automatic back-flushing filter, Bernoulli filter, electrocoagulation, inward/outward water micro filter, bar screen, etc. With our consistent efforts, high quality, competitive price and excellent after-service, our machines are supplied to clients of more than 30 countries with very good feedback.
|
|
