| Brand Name : | TOP |
| Supply Ability : | 200 Set/Sets per Month |
| Price : | $4,999.00/sets >=1 sets |

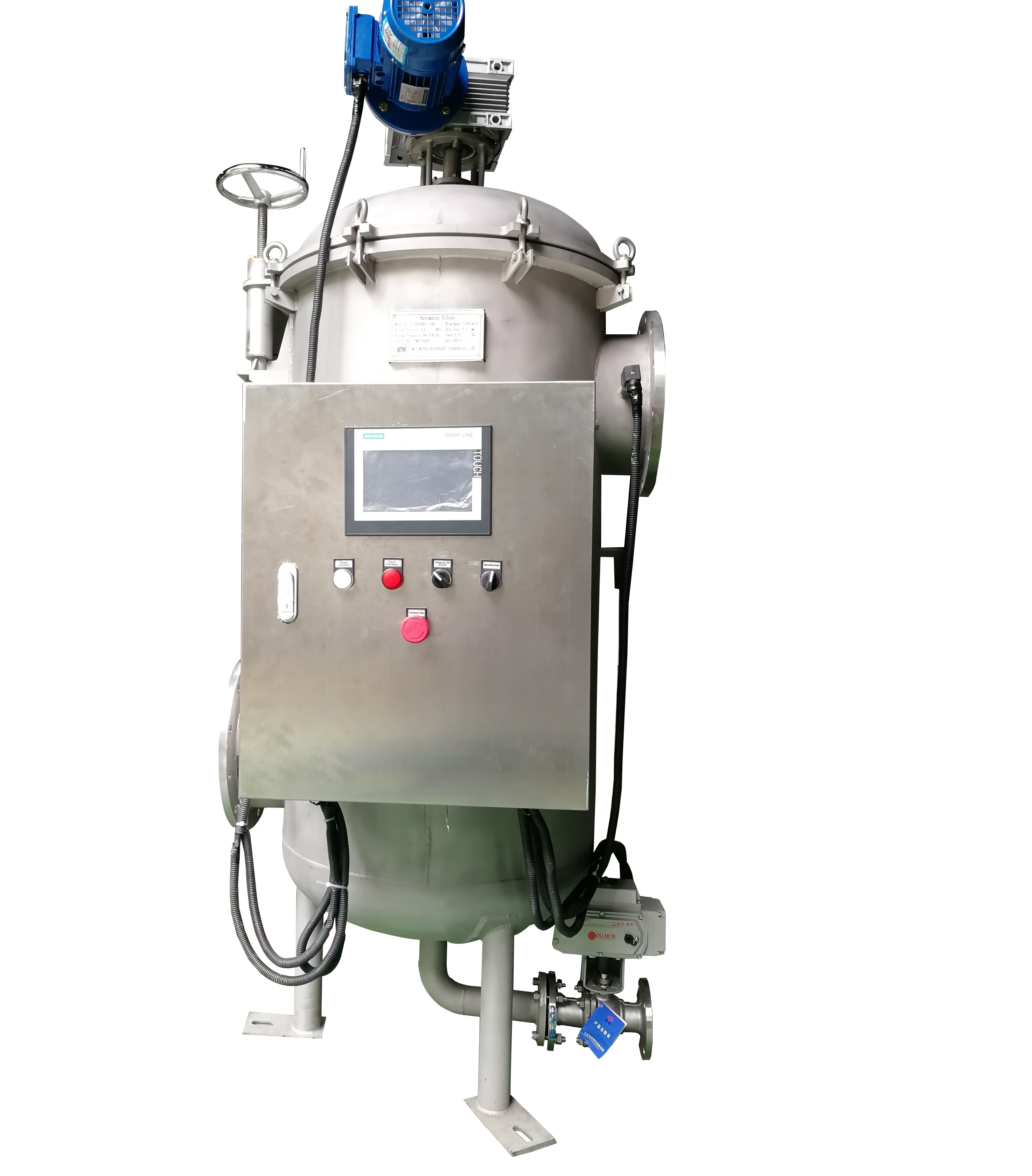

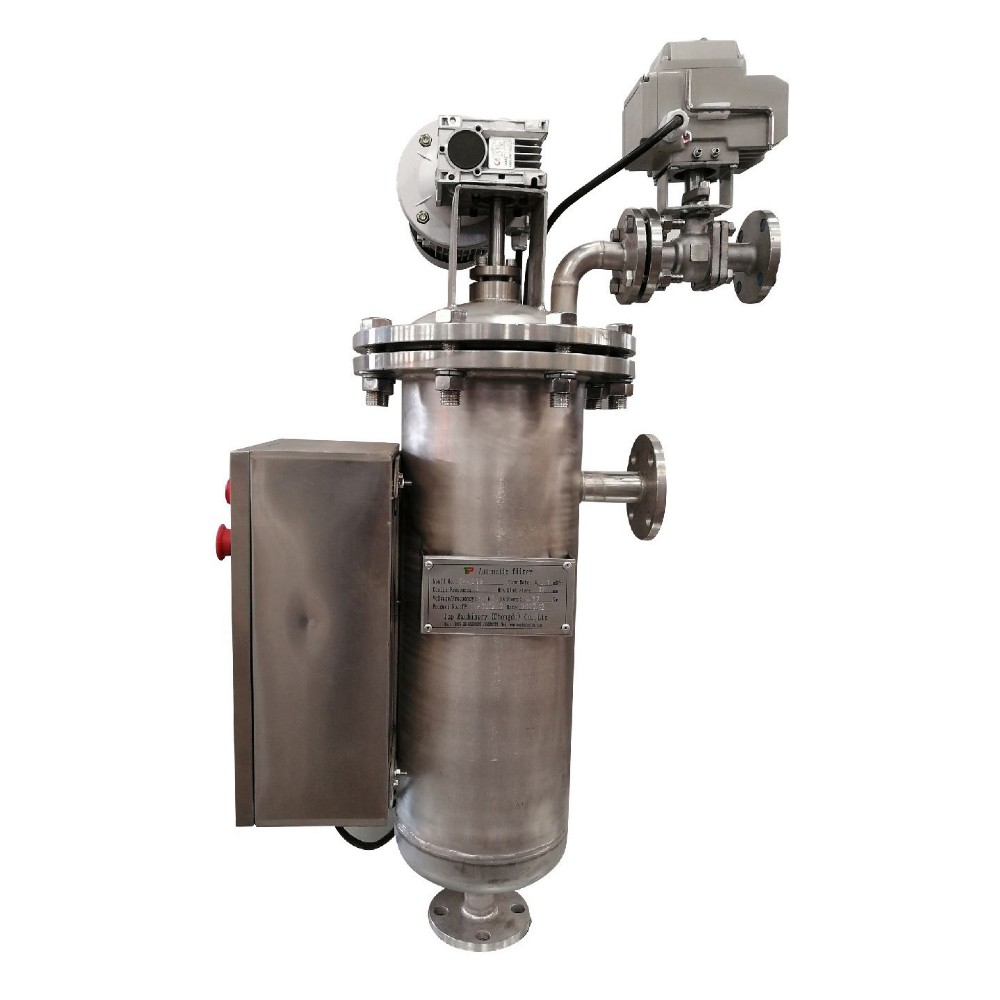

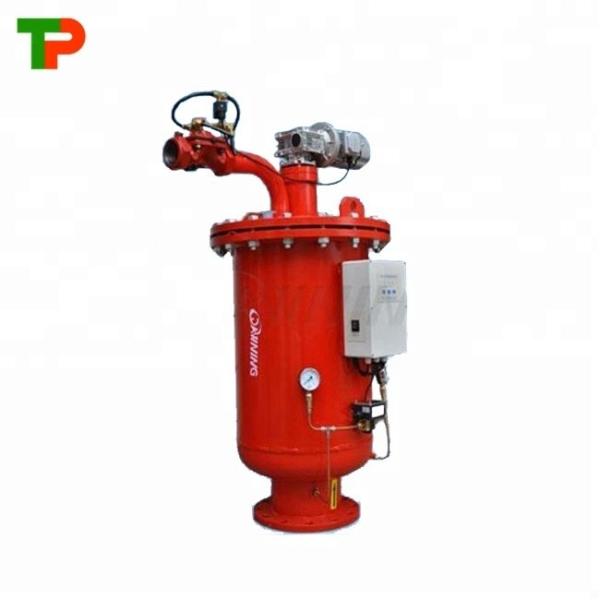

Manufacturer China of self cleaning filter is the high efficiency self-cleaning filter removing the impurities particles on the filter element outside by mechanical scraping, it continuously filters on-line. Manufacturer China of self cleaning filter is designed for fine and accurate filtration ranging from 50-500 micron. It can avoid extruding and breaking the impurities and it’s capable of the filtration for water and liquids viscosity up to 800000cps.
Products are widely used in water treatment, papermaking, petroleum, bio-pharmaceuticals, printing ink, grease, food and beverage,
Model | TPSC11 | TPSC22 | TPSC34 | TPSC75 | TPSC100 | TPSC136 |
Filter area(cm2) | 0.11 | 0.22 | 0.34 | 0.75 | 1.00 | 1.36 |
Volume (L) | 16 | 30 | 50 | 145 | 195 | 320 |
Inlet/Outlet (mm) | DN40-DN50 | DN50-DN80 | DN50-DN100 | DN65-DN100 | DN80-DN125 | DN100-DN150 |
Drain outlet (mm) | DN40 | DN50 | ||||
Applicable liquid | Viscidity (<800000cps), Impurity<1000ppm | |||||
Filtration Precision | 50-500μm | |||||
Std design P | 1.0MPa( High design pressure available) | |||||
Designed temp. | 0-200℃(Determined by the seal material) | |||||
Cleaning pressure diff. | 0.05MPa | |||||
Diff pressure switch | Differential pressure transmitter(DPT) or Differential pressure switch(DPS) | |||||
Gear motor | 180W,380V, IP55 | |||||
Filter element type | V-SLOT, 316L | |||||
Housing material | 304/316L/CS | |||||
Scraping blade material | 304/316L | |||||
Seal material | NBR/VITON(FKM) | |||||
Discharging valve | IP65 Pneumatic ballvalve, protection class IP65 | |||||
Supply facility | 380V AC,0.4-0.6MPa (Clean and dry compressed air) | |||||
1. Automatic 24 hours on-time filtration, no frequent changing out and cleaning;
2. No disposable filter media consumption, save filter media cost and environment cost;
3. Stainless steel scraping blade, good impurity removing performance;
4. Top quality V-slot filter element, accurate slots, extremely smooth, not easy to scrap;
5. Very low pressure drop, stale flowrate, save energy consumption
Our machines are widely used in many industries, such as:
1. Water and waste water
2. Pulp and paper
3. Petro-chemical
4. Bio-pharmaceutical
5. Coatings and mining
6. Irrigation
7. Steel
8. Machining
9. Others...
With our consistent effort, our machines are supplied to more than 30 countries during the past 20 years. With high quality, competitive price and good after-service, our products won high praise from customers.
With R&D team, we can design and manufacture the machine according to customer requirements.
Wooden Package with high quality to protect your machine.
Top Machinery, founded in 2002, are an
ISO9001:2015
certified manufacturer for water, wastewater and sludge treatment
equipments. Our products include screw type sludge dewatering equipment, DAF,
sludge scraper, intergrated sewage treatment equipment, sludge
dryer, self-cleaning filter, inward/outward water micro filter,
screen, etc.
We are not only equipment manufacturer but also solution provider. With Doctor Lee from Sichuan University and 8 professional engineers in our company. With our consistent effort, high quality, competitive price and good after-service, our plants are supplied to more than 30 countries.
Certificates
Exhibitions and customers
With our consistent effort,Our machine has been supplied to more than 30 countries including the Russia, Pakistan, India, Argentina, Indonesia, Romania, Canada, Turkey, Vietnam and other countries. Also we are active in many exhibitions of urban sewage treatment, wastewater treatment,textile, leather, chemical and other industries.
1.Who are we?
We are an ISO9001:2015 certified manufacturer for water, wastewater and sludge treatment equipments which have been exported to more than 30 countries with continuous repeat orders. We are not only equipment manufacturer but also solution provider. With Doctor Lee from Sichuan University and 8 professional engineers in our company, you can rely on us!
2.What do we offer?
We can supply the complete service on WTP/ETP/STP/WWTP including the project consultancy, feasibility analysis, process design, equipment model selection, equipment manufacturing, installation, commissioning and training, etc.
3.Why us?
International brands like Siemens,Schneider, SEKO and etc. are used.
Famous brand like TISCO, BAOSTEEL and etc. for stainless steel
Excellent workmanship
Quality control for each production process
4.Aftersales service
A. Engineers are availble to provide service overseas, door to door service.
B.One year gurantee for whole machine except quick-wear part.
C.24 hours technical support by email.
D. Use-friendly English software and user manual.
