Product introductions:
TPE series Bernoulli self-cleaning filter (TPE filter), is designed for continuous filtration pressure pipe on the system design, can remove particulate impurities in all kinds of water quality (such as sea water, lake water, circulating cooling water and so on) . The TPE filter design based on the Bernoulli principle, simple structure with very high operating reliability.
Features:
l A simple and reliable structure, only two moving parts (cleaning disk, t he drain valve)
l Non-contact cleaning, particles will not be out of the filter element, low pressure can keep stable effect, cleaning and sewage removal excellent impurity is poor, less than 0.011MPa
l Low working pressure requirements, the highest 0.03MPa
l Wide flow range, single flow of 5-7000m3/h
l Self cleaning flow uninterrupted
l Filtering precision :0.1-2mm
l Flexible installation form, horizontal or vertical.
Application:
l Applicable industry: water treatment, cooling system, heat exchanger protection, protection of nozzle, ballast water treatment system
l Apply fluid: groundwater, seawater, lake water, river water, cooling water, waste water, process water, cleaning water

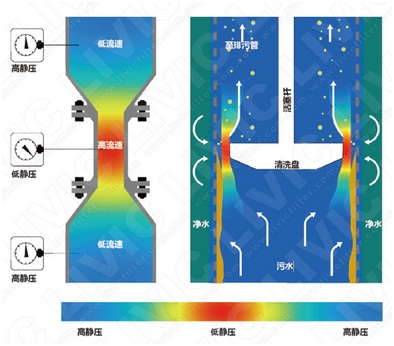

Working principle:
Technical parameters:
Working pressure | 0-0.3Mpa |
Filtration precision | 100-2000 μ M |
The maximum interception grain steel | 4mm |
Design pressure | 0.6Mpa/1.0Mpa/1.6Mpa/2.0Mpa/2.5Mpa |
Design temperature | 80 °C (S serial), 60 °C (G serial) |
Flow range | 30-7000m3/h |
Cleaning pressure | 0.011Mpa |
Control system | differential pressure and time of parallel dual control mode |
Differential pressure indicator | differential pressure transmitter or differential pressure switch |
Import and export size | DN65-DN600 |
Import & export standard connections | flange, HG20592-2009 (compatible with DIN) HG-20615-2009 (ANSI B16.5) |
Filter element types | wedge gap metal filter element (100-2000 μ m) |
Filter element material | 316L/ super duplex stainless steel / titanium 2 |
Piston rod material | 316L |
Shell is connected with liquid material | 304/316L/CS/GRP |
Anticorrosive coating | 11 nylon, rubber |
Shell sealing material | NBR NBR (standard) /VITON (FKM) Eph rubber |
Drain valve | pneumatic butterfly valve, protection class IP65 |
Public supply requirements | 0.6Mpa clean and dry compressed air110V/220V (standard) /380V/440V AC, 24V DC |
