Automatic self-cleaning water filter is the high efficiency scraping self-cleaning filter independently developed by TOP. Filtration ranging from 50-500 micron. It can avoids extruding and breaking the impurities and is capable of the filtration for water and liquids of viscosity up to 800000cps.
Self cleaning Features
Technical parameters
General type code | TPX11/TPX22/TPX34/TPX75/TPX100/TPX136 |
product type | Automatic self cleaning filter |
Liquid available | water and viscous liquids(<800000cps), impurity<1000ppm |
Filtration Rating | 50-500μm |
Standard design pressure | 1.0MPa,high design pressure available |
Filter Area | 1100/2200/3400/7500/1000/1.36 cm2 |
Volume | 16/30/50/145/195/320 L |
Design Temperature | 0-200℃(determined by the seal material) |
Cleaning differential pressure: | 0.05MPa |
Differential pressure instrument | differential pressure transmitter(DPT) or differential pressure switch(DPS) |
Gear motor | 180W, 3P,380V,protection class IP55, worm reduction gear |
Housing wet part material | 304/316L/CS |
Scraping blade material | 304/316L |
Housing seal materia | NBR/VITON(FKM) |
Filter element type | V-slot slotted metal filter element,316L |
Discharging valve | Pneumatic ballvalve, protection class IP65 |
Facility Supply | 380V AC,0.4-0.6MPa clean and dry compressed |
Slot Section of self cleaning filter
The Continuous slot screens are made of V-shape wire or wedge shape wire around an internal array of longitudinal support rods. Each jointpoint of these wire is fusion welded, the V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening. Therefore the screen allows water or oil to enter the well freely in ample quantities while keeps the majority of sand and gravel out of the well at the same time.
Filter Structure Options
Self cleaning filter Working Principle

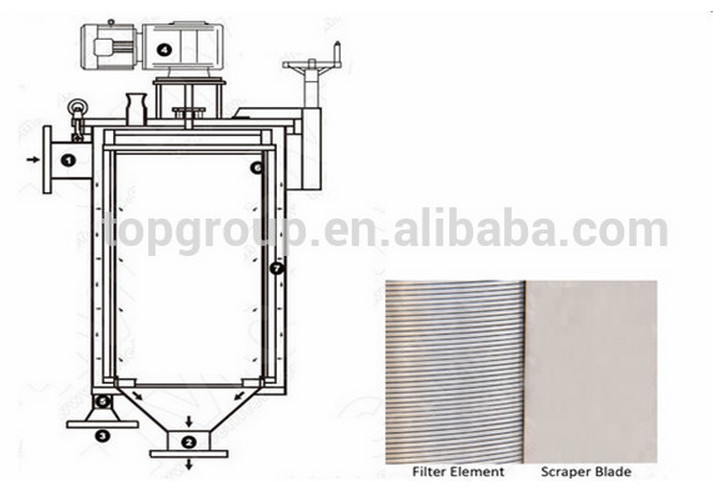

The liquid enters the filter from the inlet(1), flows through the filter element(6) from outside to inside. The filter element bottom is connected to the outlet(2), through which the liquid flows out. After the filter element captures the impurities, the cleaning action is trigger by the preset time or differential pressure value. The gear motor(4) drives the scraping blades(7) to rotate and remove the impurities on the filter element outside surface. The impurities moves off along the blades and falls down to the filter bottom. The rotating plates push the gravity impurities into the collection chamber(5). The impurities are collected at the filter bottom and in the collection chamber. The discharging valve open per the preset time and discharging the waste liquid with high impurity concentration through the drain outlet(3), the purged liquid can be reclaimed if necessary.
